Handheld Precision Liquid Filling Machine | 1–30 mL

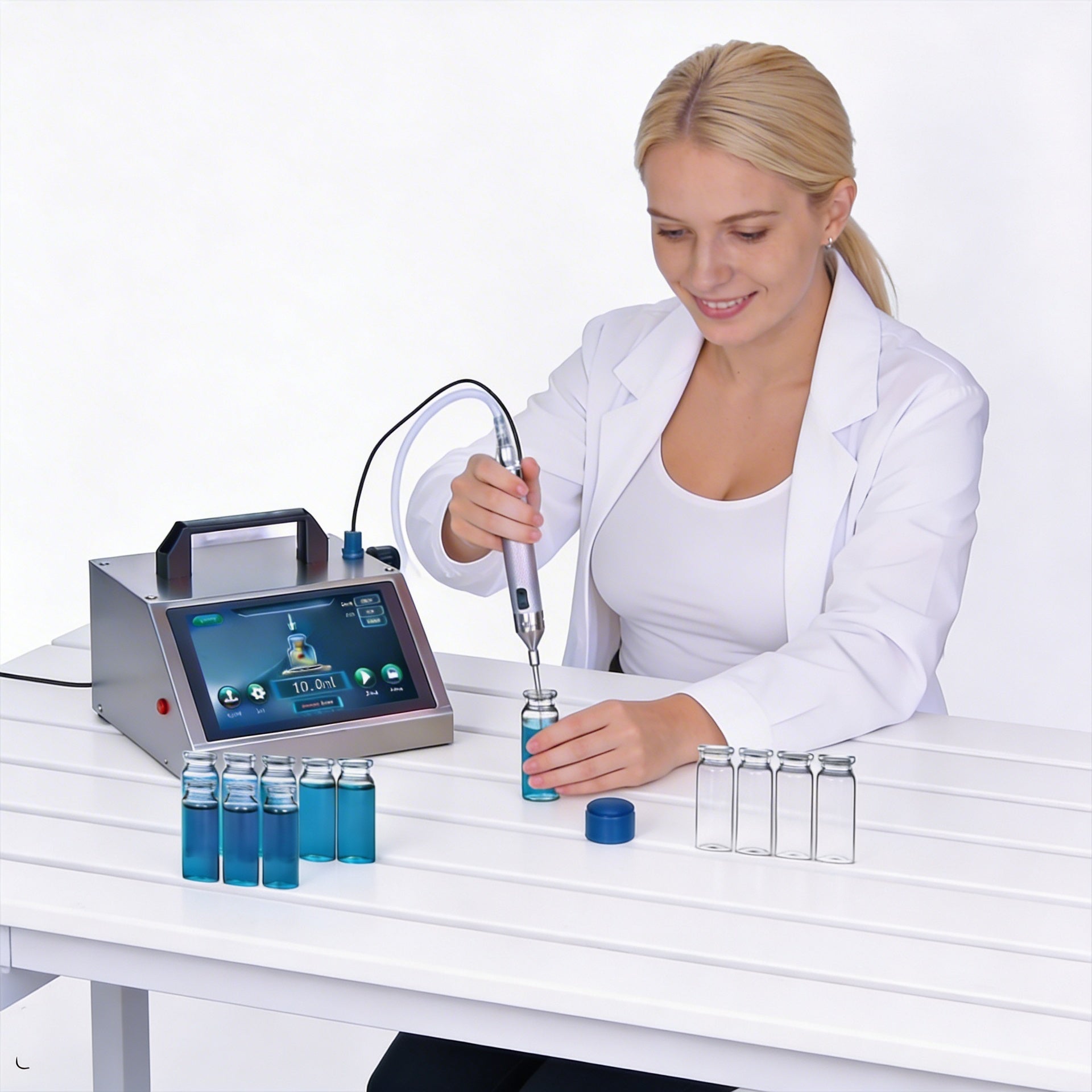

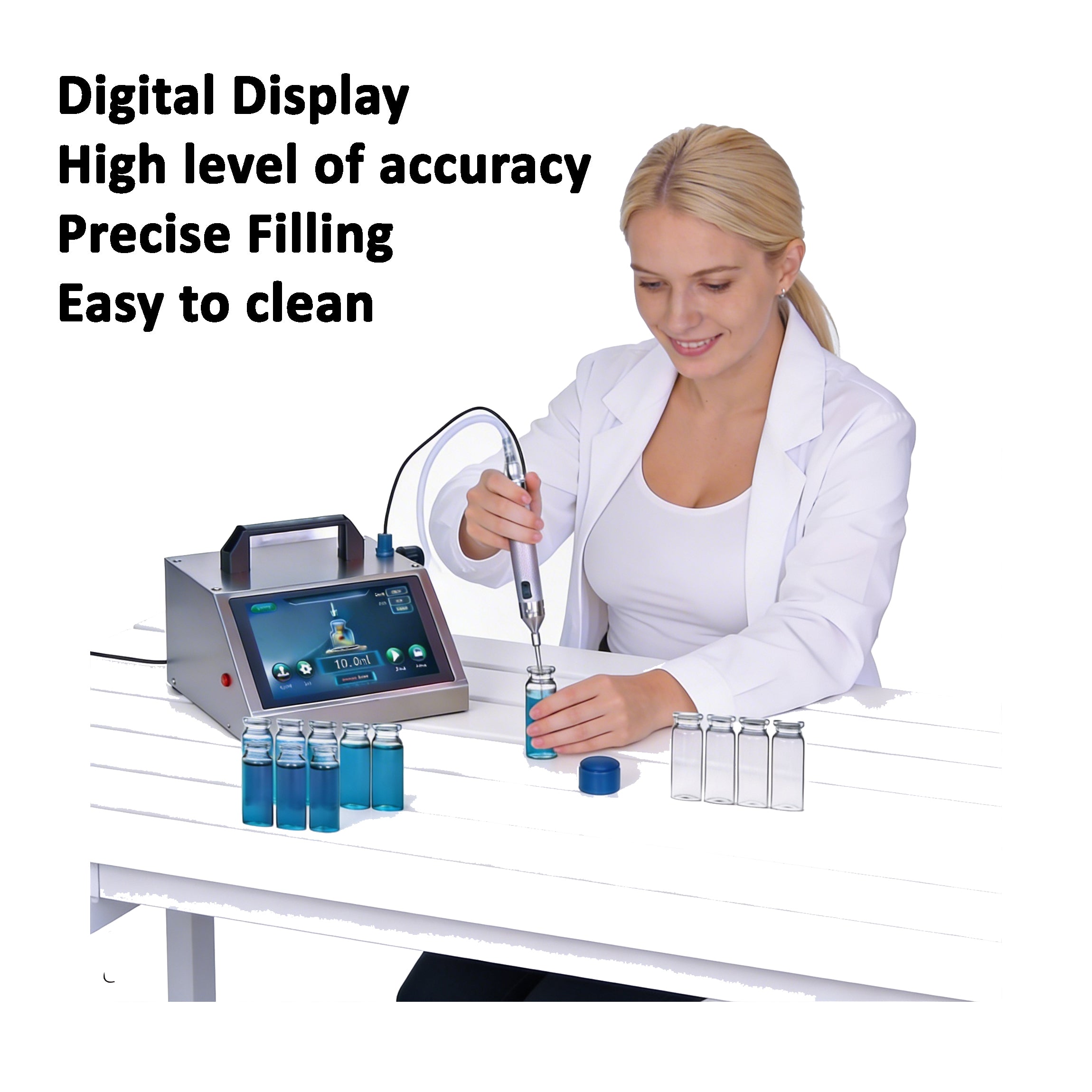

The AusLabs handheld liquid filling machine is designed for controlled dispensing of compatible liquids into small bottles, vials and narrow-neck containers. Its digital LCD screen and handheld dispensing pen allow users to select filling volumes from 1 mL to 30 mL for small-batch and laboratory filling workflows.
Key Features
- Adjustable filling volume: 1–30 mL (HD1360 model)

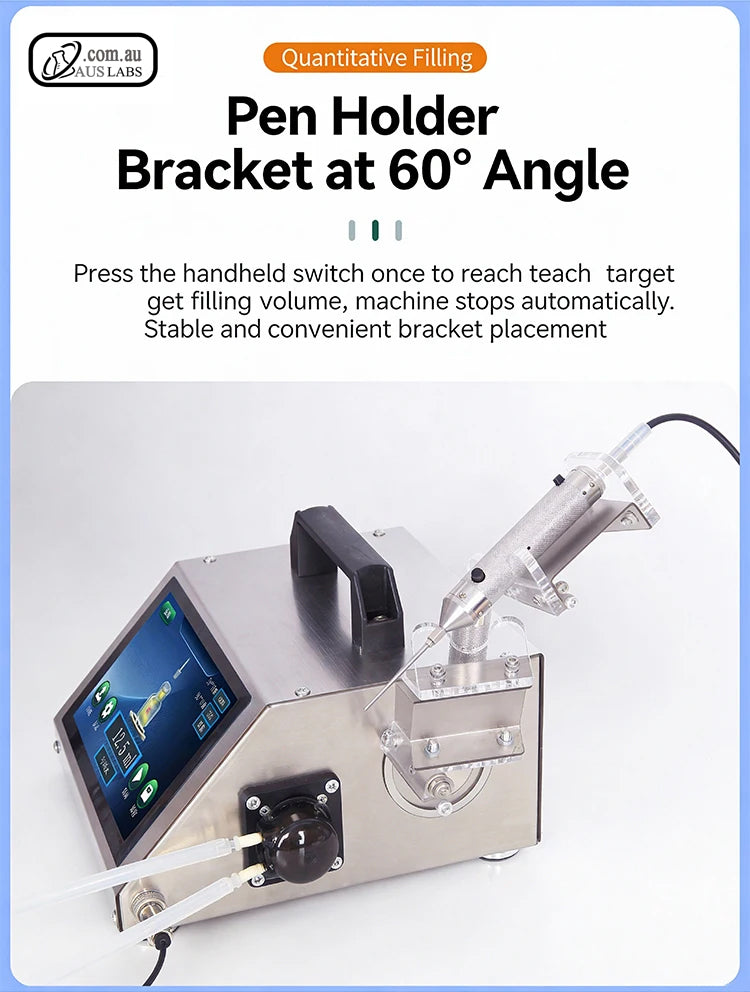

- Digital LCD control screen and handheld dispensing pen

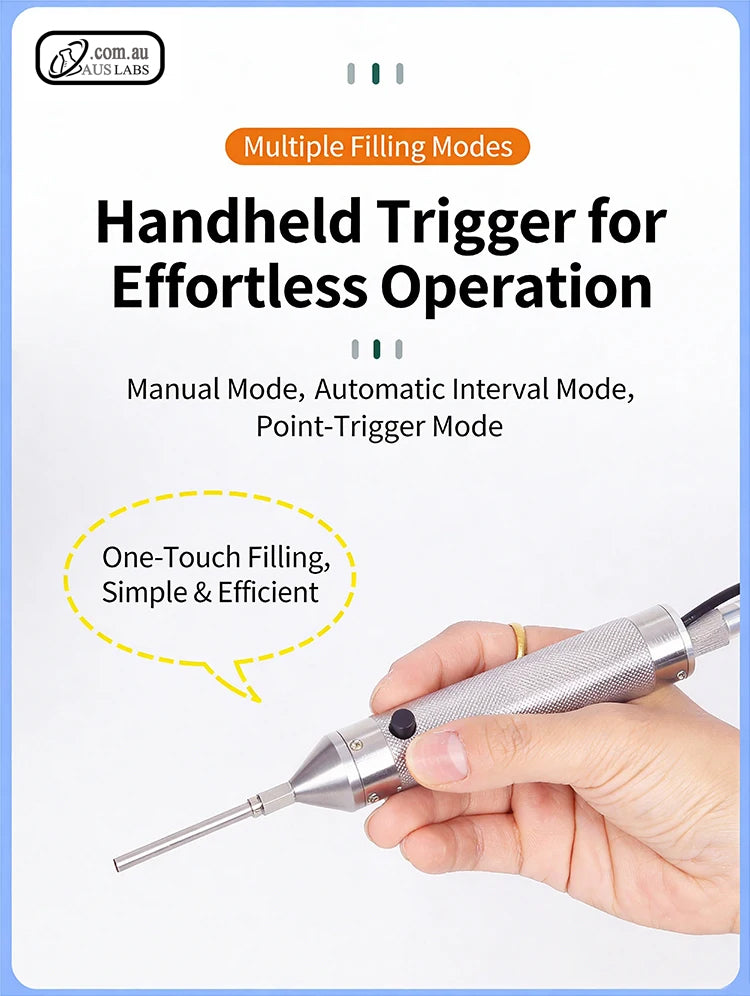

- Three operating modes: point, manual and automatic interval
- Pump calibration function and adjustable dispensing settings

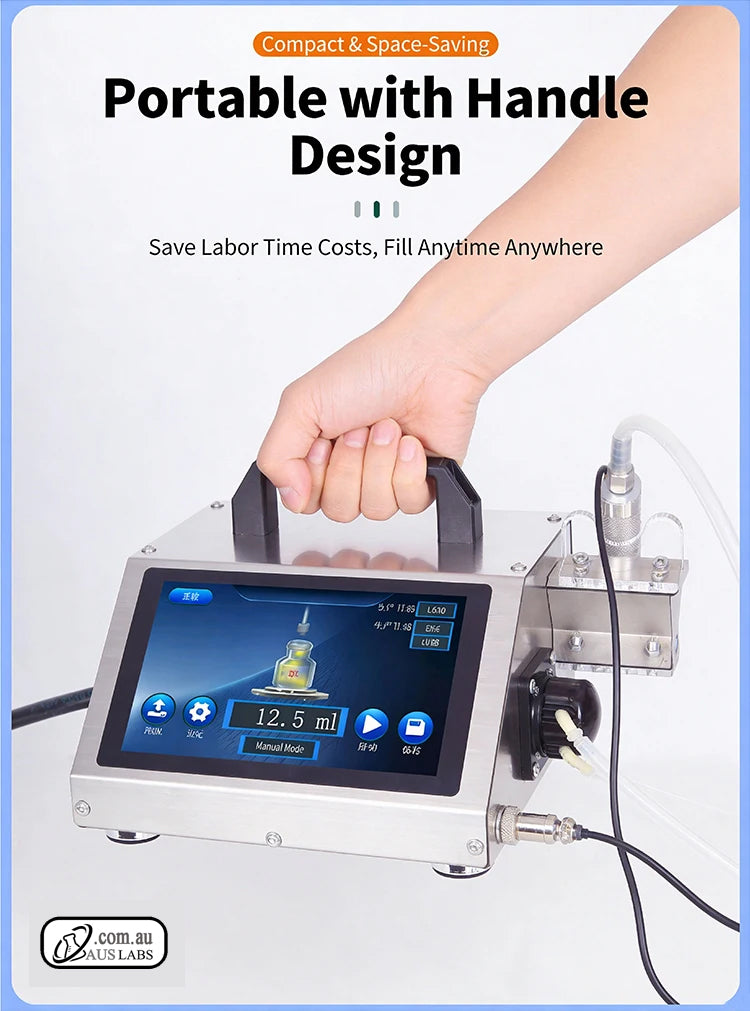

- Portable design with carrying handle
- For bottle openings with an internal diameter of at least 2 mm
Technical Specifications
| Model |
HD1360 (supported by identification code; refer to machine label) |
| Filling range |
1–30 mL |
| Rated power |
50 W |
| Manufacturer's stated power supply |
AC 220 V, 50–60 Hz |
| Minimum bottle opening |
2 mm internal diameter |
| Liquid inlet tubing |
1.5 m |
| Liquid outlet tubing |
1 m |
| Machine weight |
To be confirmed |
Important Operating Information
Clean the machine before first use and after each use. Do not pump corrosive liquids or liquids containing particles or impurities. Confirm compatibility of each liquid with the pump, tubing and dispensing components before use.
Electrical safety: The manufacturer states AC 220 V. Suitability for Australian mains power and applicable electrical compliance must be confirmed before operation.
