Description
|
Magnetic Hotplate Stirrer Technical Data |
|||

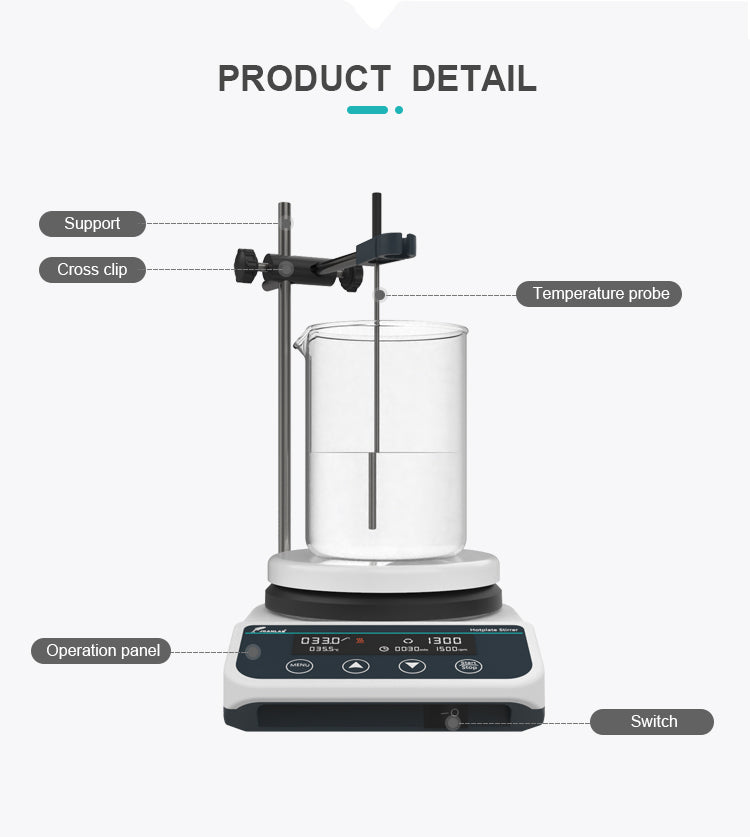

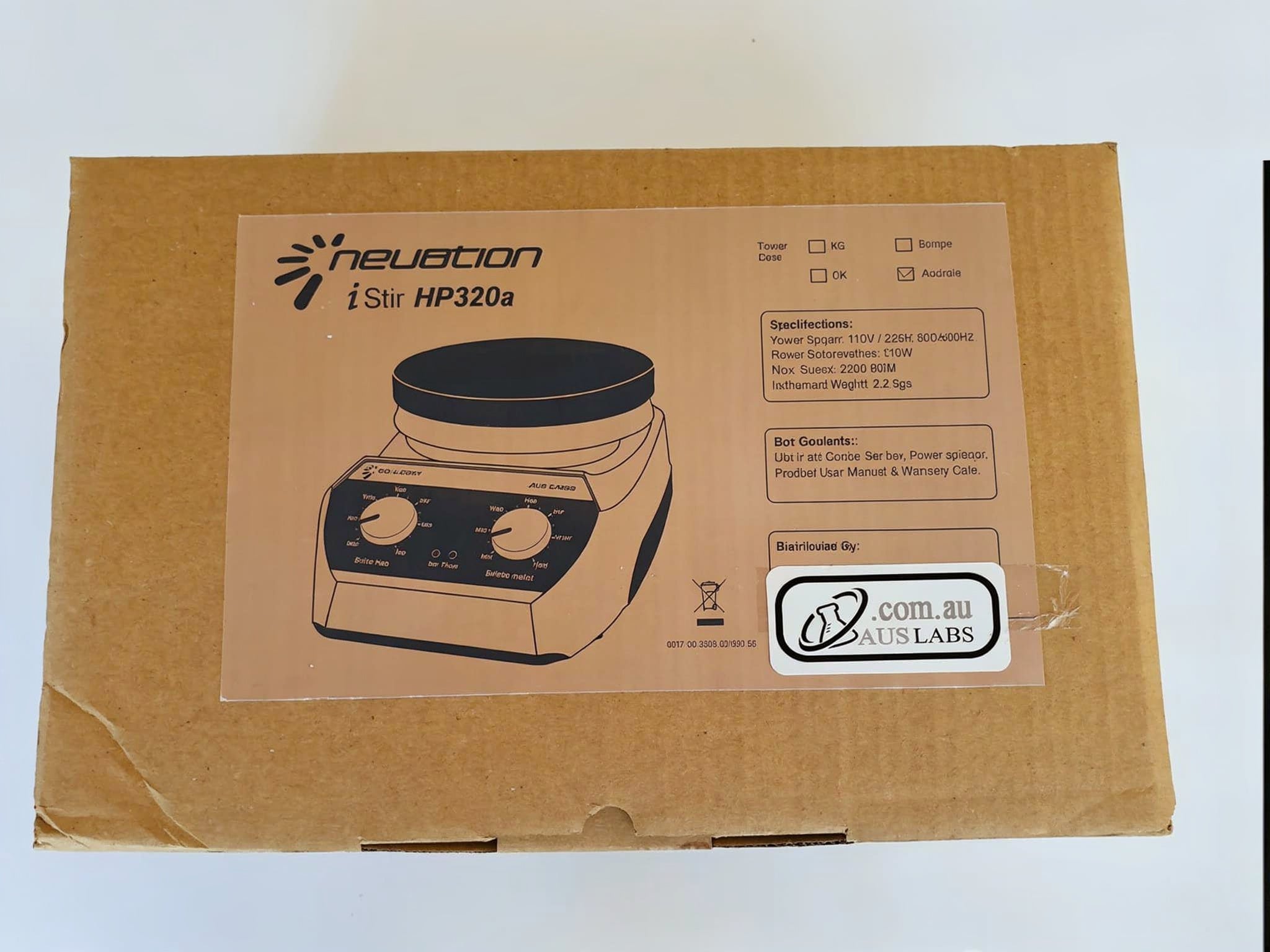

| Picture |  |
||
| Control |
Digital control panel |
||
| Descripition |
Heating & Stirring |
||
| Motor type |
Brushless motor |
||
| Speed |
50 - 1500 rpm |
||
| Max stirring volume |
2L (H2O) |
||

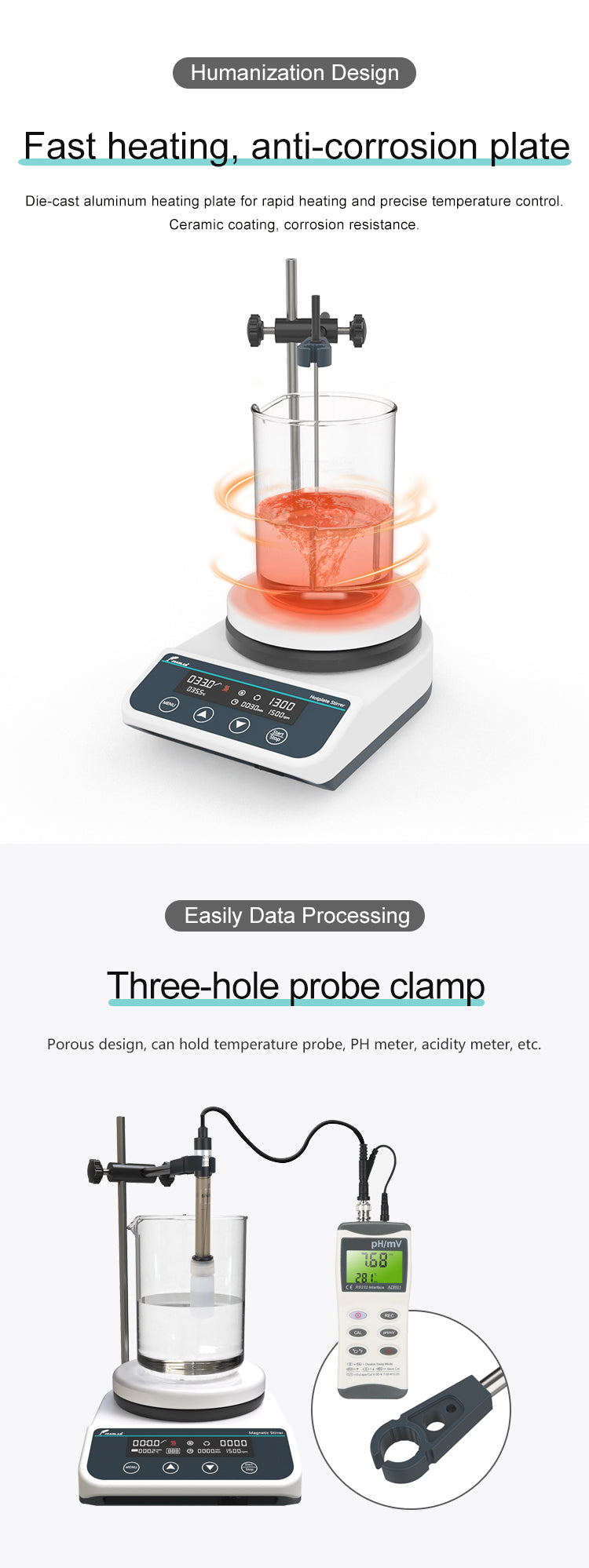

| Working plate | φ 135MM （anti-corrosion ceramic plate） | ||
| Plate temperature |

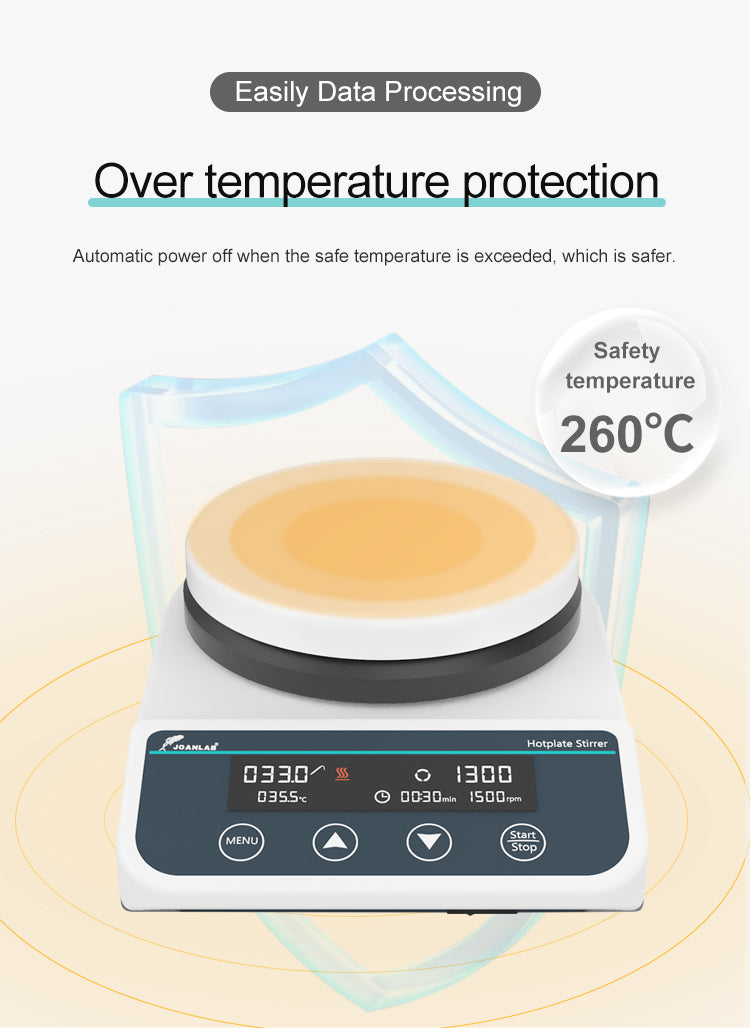

260℃ |
||
| Liquid temp control accuracy | ±1℃ | ||
| Plate temp control accuracy | ±3℃ |
||
| Power | 400W | ||
| Stir bar size | 20 - 40W | ||

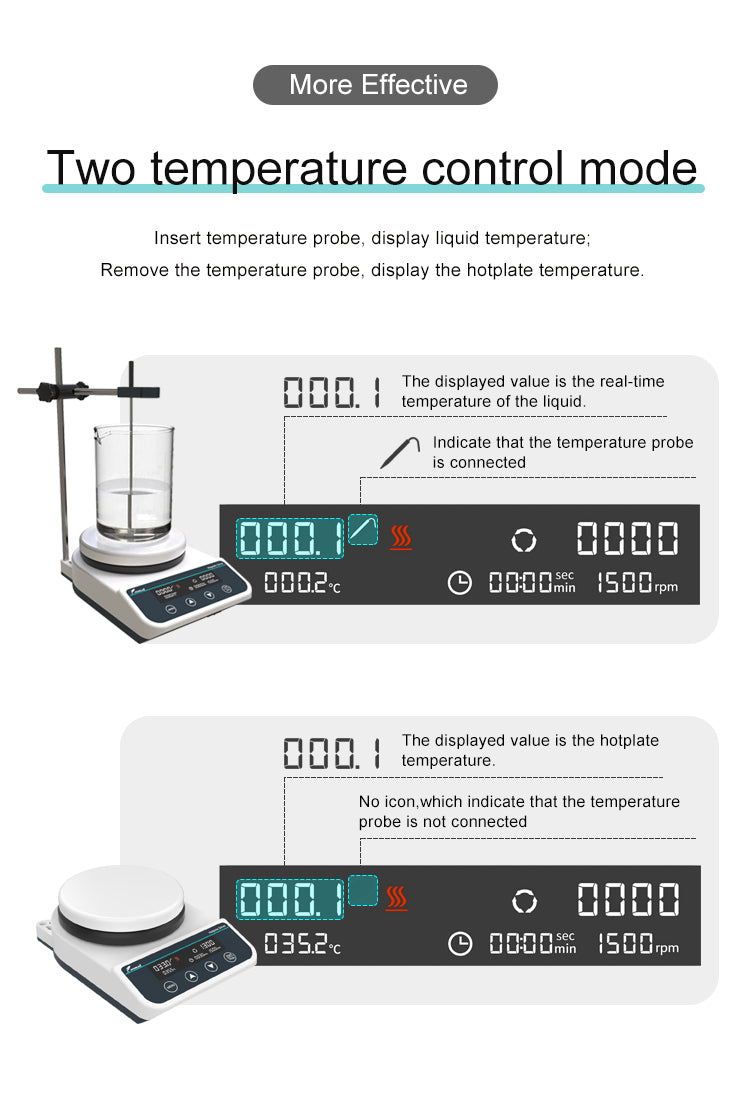

| Temperature sensor | Inside and outside PT1000 | ||
|
Shell protection level |
IP42 | ||
| Product size | 155 * 220 * 700 MM | ||
| G.W. / N.W. | 0.7KG | ||
